Heat Regenerating Dryers

ultra.dry HRE adsorption dryers are blower air dryers that suck in ambient air and regenerate the desiccant by means of an electric heater. The desiccant is cooled by means of purge air, a small percentage of compressed air that has already dried.

• High energy efficiency
• High capacity reserves
• Reliability
• Operational reliability, easy maintenance
• Touch display for service- and operation-friendly work
• Pneumatic box for the protection of sensitive components
• High corrosion resistance due to HT-galvanized piping
• Volume flows 0400 m3;3/h - 9500m3;3/h
• Pressure dew points down to -40°C

VarioBlo adsorption dryers are blower air dryers that suck in ambient air and regenerate the desiccant by means of an electric heater. The desiccant is cooled by means of ambient air sucked in.

• Zero flush, with flush option (Two in One safe operation, easy to maintain)
• High energy efficiency
• High capacity reserves
• Reliability
• Operational reliability, easy maintenance
• Touch display for service- and operation-friendly work
• Pneumatic box for the protection of sensitive components
• High corrosion resistance due to HT-galvanized piping
• Volume flows 0400 m3;3/h – 9500m3;3/h
• Pressure dew points down to -40°C

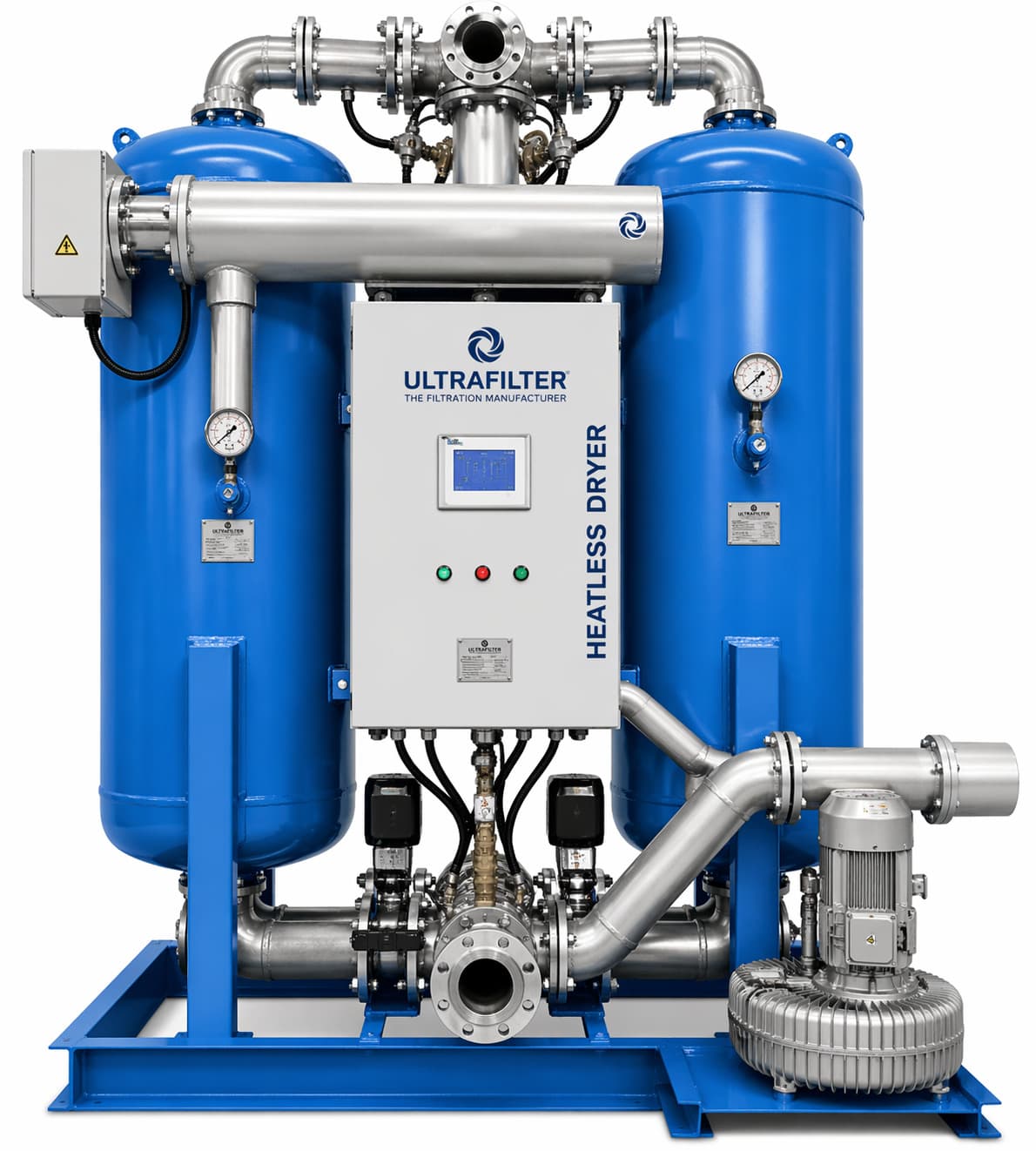

VarioBlo Loop adsorption dryers are blower air dryers that suck in ambient air and regenerate the desiccant by means of an electric heater. The desiccant is cooled in a closed circuit (loop version) by means of an integrated intercooler.

• Zero flush, with flush option (Two in One safe operation, easy to maintain)
• High energy efficiency
• High capacity reserves
• Reliability
• Operational reliability, easy maintenance
• Touch display for service- and operation-friendly work
• Pneumatic box for the protection of sensitive components
• High corrosion resistance due to HT-galvanized piping
• Volume flows 0400 m3;3/h – 9500m3;3/h
• Pressure dew points down to -70°C
